Swing LR 500 Rural Gate Opener with Solar Kit

MRGLSK-SP



Description:

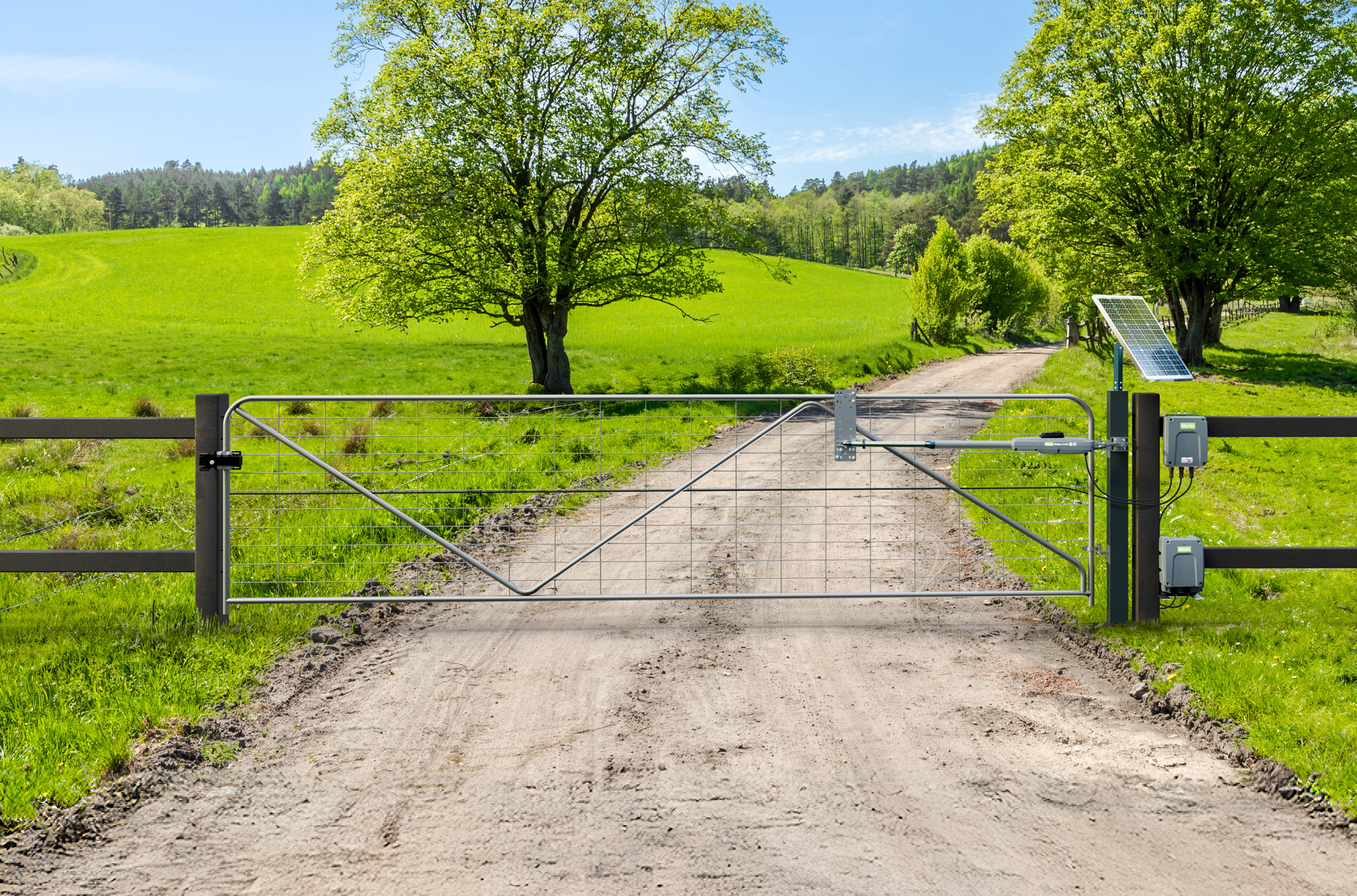

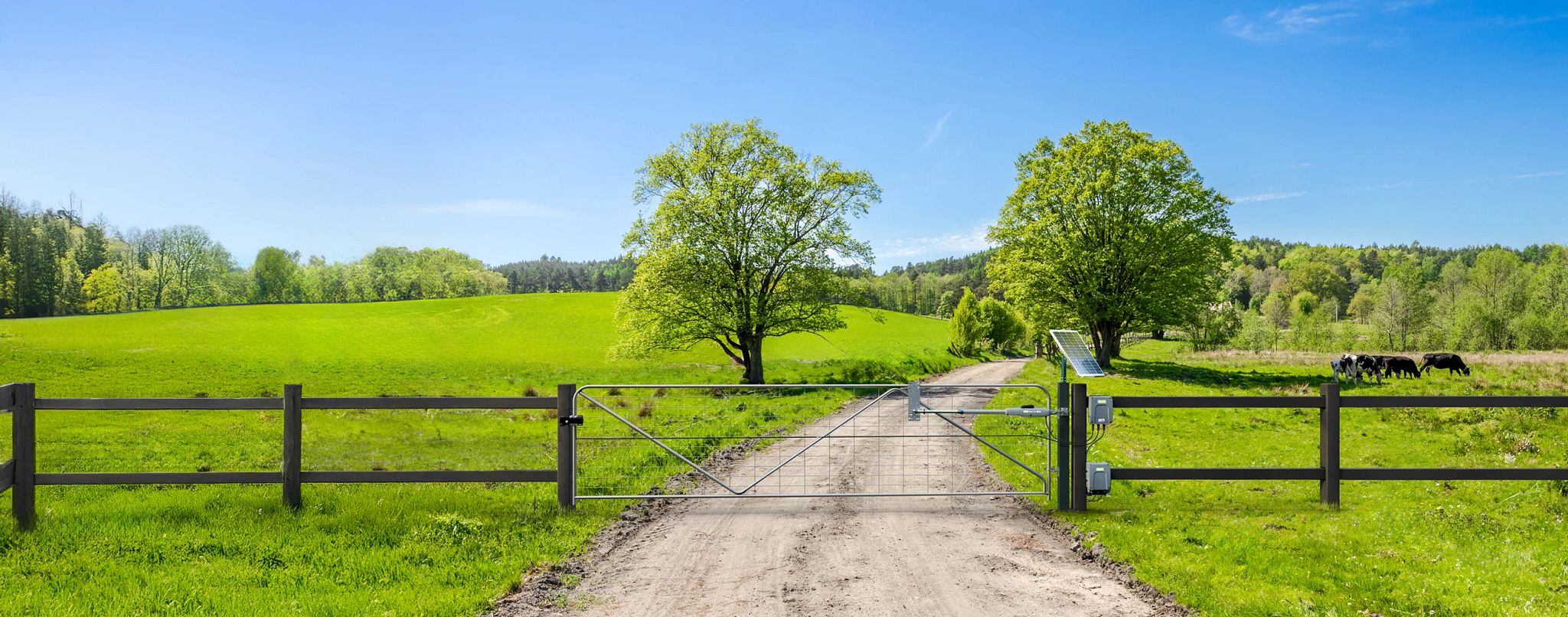

Simplify your manual gate access with the Merlin Swing LR 500 and Solar Kit. Enjoy hands-free, off-grid convenience with this solar-powered farm gate opener built to handle long distances, harsh climates and limited access to mains power. Whether you’re operating a rural farm gate or a remote property entrance, this smart solution gives you complete control wherever you are.

Fitted with a durable solar-powered farm gate opener kit—including a high-capacity battery and 40W solar panel—the LR 500 and Solar Kit keeps your gate running day and night, even in low sunlight. Built to thrive in tough Aussie conditions, you can enjoy everyday access and automated comfort through heatwaves, downpours, and everything in between. All without the cost of complexity of electrical work.

Backed by a 3-year Merlin warranty, it’s a reliable choice for anyone looking to upgrade their rural access with ease. If you’re looking for a smarter, simpler way to manage your gate, make the Merlin choice.

  • Product Features
  • Specifications
  • Included Accessories
  • Downloads

- Maximum Gate Width
- 200kg for 5m gate
- 250kg for 4m gate
- 300kg for 3m gate
- Maximum width for single gate: 5m

General

Maximum Gate Width - 200kg for 5m gate - 250kg for 4m gate - 300kg for 3m gate Maximum width for single gate: 5m

Door Specs

Door Opening and Closing Times

Door Height

Standard Specifications - Solar Power Supply Rated Output Voltage: 21.6VDC to 35VDC - Motor Voltage: 24 VDC - Input Power: 50 W - Ambient Temperature Range: -20 - +55*C -Max peak pulling force: 1,500Nm -Travel Speed:Opens 120' in 20-27 seconds -Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 technology -Compatible with myQ technology -Gate opener capacity of up to 64 memory registers -IP44 Weather Resistant SOLAR-KIT: IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel 2 x 18Ah batteries 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*) Adjustable Solar Panel Mounting Kit 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation * If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required. The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

2 x E975M

Logic Box

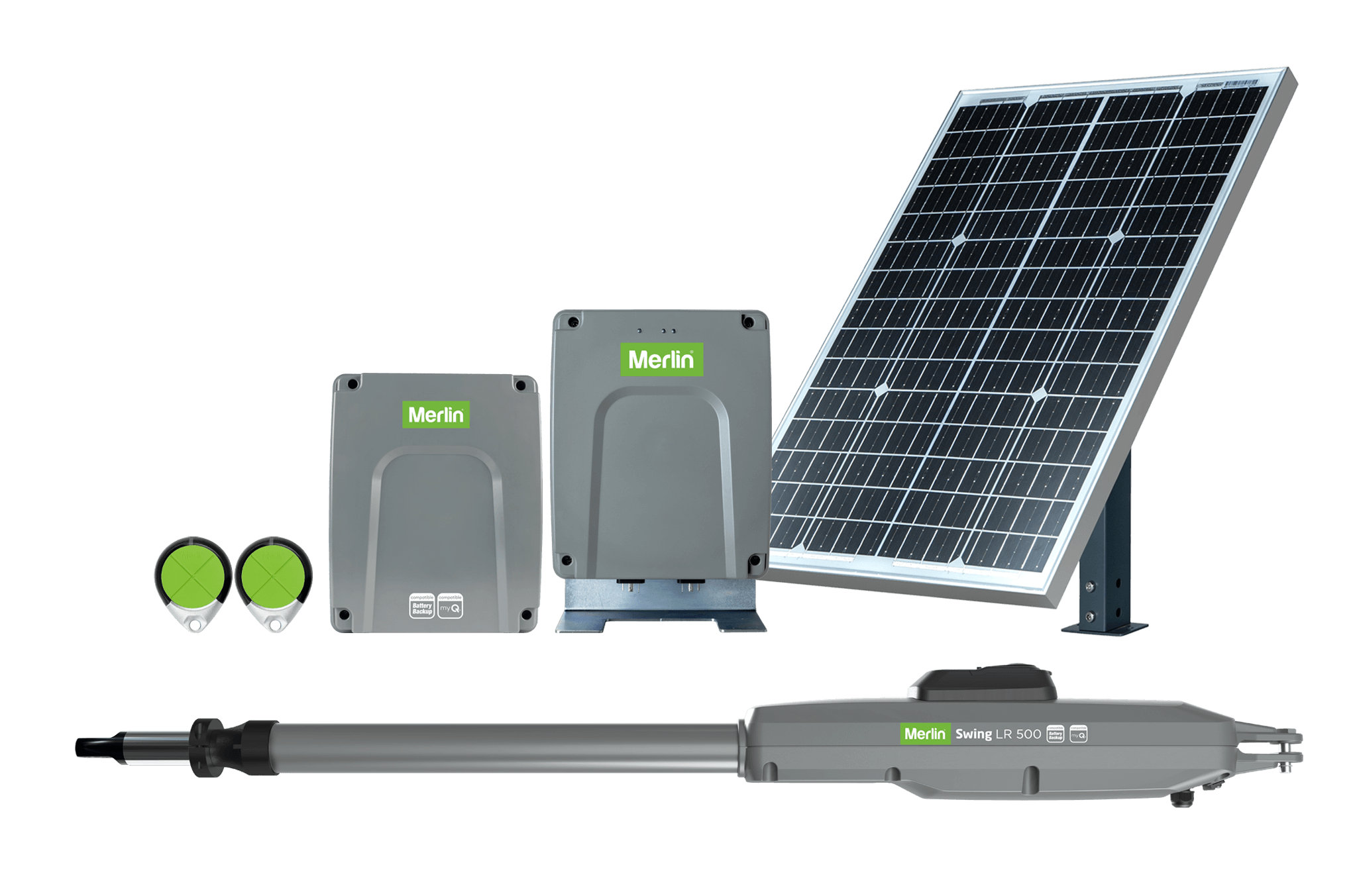

Solar Kit
