SilentDrive Essential MR655MYQ

MR655MYQ

$899.00 (incl. GST)

Badge
Badge

Description:


* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition.

* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.



The SilentDrive Essential is myQ compatible, with bright LED lighting, quiet operation and includes 2 x premium hand held remotes.



5 Year Warranty Terms & Conditions apply.

Garage Door Opener and Garage Door to be professionally serviced during 24 to 36 months of the Chamberlain Limited Warranty period. See the last page of the Installation Manual for detailed warranty conditions.



myQ is compatible with iOS devices running iOS 11 or newer, and Android devices running Android 7 or newer. Before purchasing or installing myQ on your device, please ensure you have access to a device with the appropriate firmware.



  • Product Features
  • Merlin Safety Features
  • Specifications
  • Included Accessories
  • Downloads
  • Videos



SMART

User-added imageMYQ COMPATIBLE TECHNOLOGY lets users create schedules, monitor, receive alerts and control the garage door opener away from home.1
User-added imageSOFT-START AND SOFT-STOP for smooth operation.
QUIET & RELIABLE

User-added image5-YEAR WARRANTY
User-added imageQUIET DC MOTOR eliminates noise and vibrations through the ceiling and provide smooth operation.
User-added imageHEAVY-LIFTING POWER operates doors up to 100 kgs.

SAFE & SECURE

User-added imageSECURITY+ 2.0® sends a new code with every remote click.
User-added imagePREMIUM AUTOMATIC SAFETY REVERSE function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
User-added imageTIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.3
User-added imageIMPROVED TRANSMITTER RANGE has up to 18% better range meaning you can start opening your garage door sooner.3
User-added imageAUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your garage with each operation.
Manual ReleaseMANUAL RELEASE CORD allows you to open your garage door whenever needed.

1 Additional purchase of Merlin myQ Gateway and Safety IR Beams accessories required to enable myQ functionality.
2 Safety IR Beams must be installed to enable the use of Timer-to-Close. See User Guide for additional information. Smartphone not included.
3 When compared to other available Merlin products.


Premium Automatic Safety Reverse

  • With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

  • Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

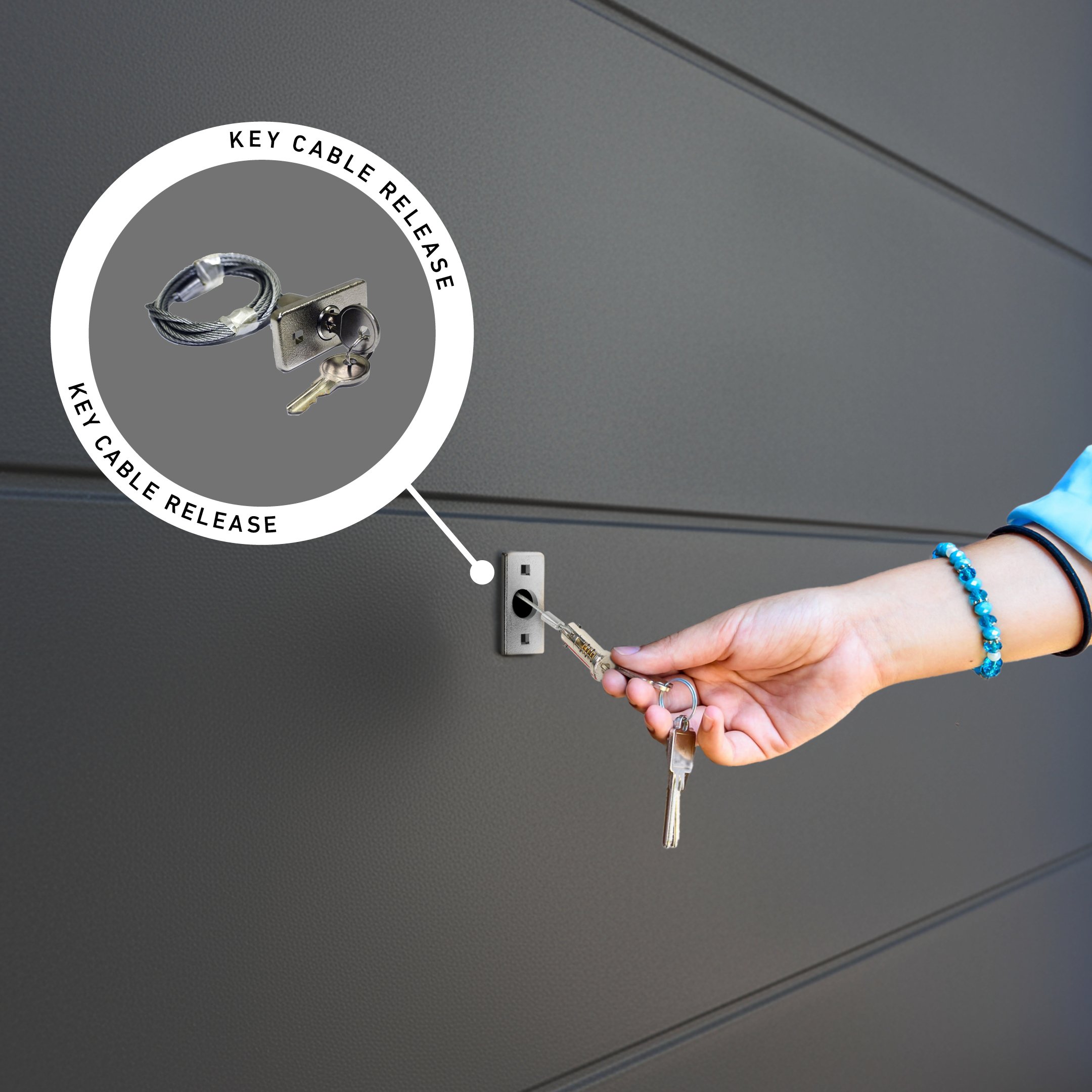

Manual Release

  • In case of power failure you can simply activate the manual release to open your garage door.

General

  • 24 DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Drum rotations: 4.5
  • Max Door weight: up to 100kg
  • Max peak pulling force: 500N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Noise rating: 1M 57DB

Door Specs

  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors

Door Opening and Closing Times

  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.4m high door

Door Height

  • Door height: 4.5m, 3.0m
  • Door width: 3.6m, 5.4m
  • Single dwelling

  • User-added image2 x  Four Button Remote Control (Security+ 2.0 & Security+) (E970M)
  • User-added imageFour Button Wireless Wall Mount Remote Control  (Security+ 2.0) (E148M)
  • User-added imageWeight Bar
