Commander Ultimate MJ3800MYQ

5.00 out of 5 based on 1 customer rating

$1,699.00 (incl. GST)


* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition.
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.

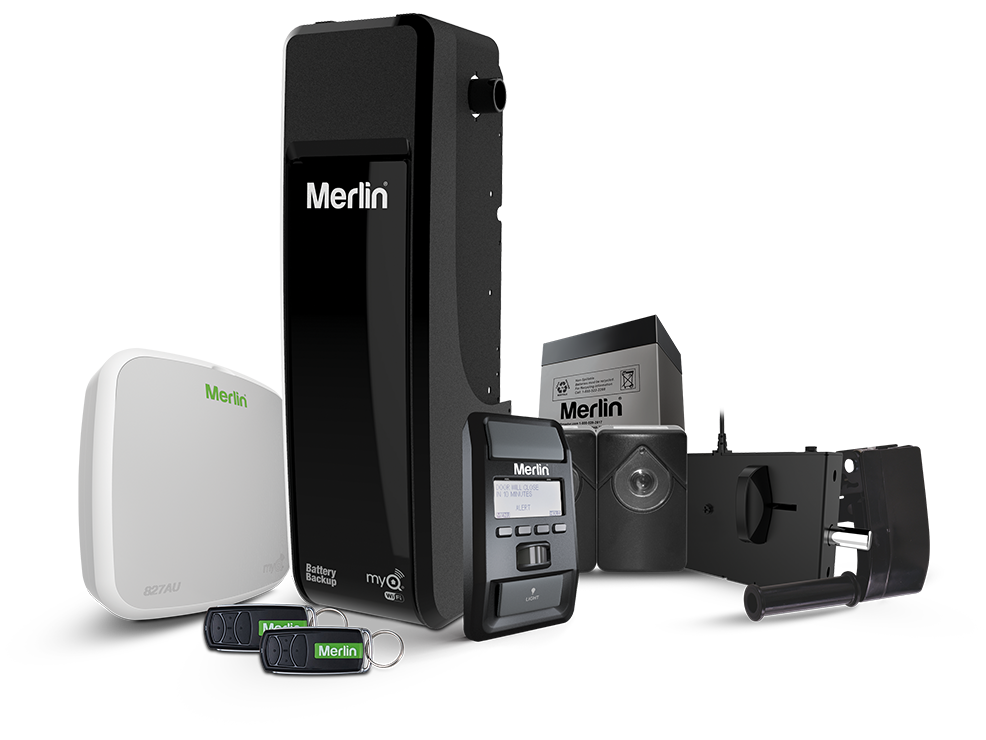

Open Up Possibilities, Commander Ultimate is the most premium opener within the Merlin sectional range with built-in myQ Wi-Fi & integrated Battery Backup with Security+2.0. Jam packed with many accessories including a myQ remote LED light, Smart Control Panel, Automatic Door Lock, Cable Tension Monitor, 2 x Premium+ remotes.

Watch the Commander Ultimate video here.

myQ is only compatible with iOS devices with firmware 11, 12 and 13, and Android devices with firmware 7, 8 and 9. Before purchasing or installing myQ on your device, please ensure you have access to a device with the appropriate firmware.

  • Product Features
  • Merlin Safety Features
  • Specifications
  • Included Accessories
  • Downloads
  • Reviews (1)


User-added imageINTEGRATED MYQ TECHNOLOGY lets users create schedules, monitor, receive alerts and control the garage door opener away from home.1
User-added imageBUILT-IN WI-FI for the easiest way to connect the garage.
User-added imageMYQ REMOTE LED LIGHT Ultra-bright LED light designed to illuminate your garage or workspace. Controlled through your garage door opener, remote control or the myQ app.
User-added imageSOFT-START AND SOFT-STOP for smooth operation.
User-added image7-YEAR WARRANTY
User-added imageWALL-MOUNT DESIGN AND QUIET DC MOTOR virtually eliminates all noise and vibrations through the ceiling and provides smooth operation.
User-added imageHEAVY-LIFTING POWER operates doors up to 130 kgs without The Protector System (Safety IR Beams) and 230kg with The Protector System (Safety IR Beams).
User-added imageINTEGRATED BATTERY BACKUP ensures access even when the power is out.
User-added imageSPACE-SAVING DESIGN reclaims overhead space with wall-mounted design and opens up storage opportunities.
User-added imageSECURITY+ 2.0® sends a new code with every remote click.
User-added imagePREMIUM AUTOMATIC SAFETY REVERSE function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
User-added imageTIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.1
User-added imageMOTION DETECTOR automatically turns on the light.
User-added imageAUTOMATIC GARAGE DOOR LOCK prevents unwanted entry and provides an extra layer of security.
User-added imageTHE PROTECTOR SYSTEM™ (Safety IR Beams) auto-reverses the door if there’s an obstruction.
User-added imageAUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your garage with each operation.
Manual ReleaseMANUAL RELEASE CORD allows you to open your garage door whenever needed.

 1Safety IR Beams must be installed to enable the use of Timer-to-Close and full myQ functionality. See User Guide for additional information. Smartphone not included.

Premium Automatic Safety Reverse

With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

In case of power failure you can simply activate the manual release to open your garage door


  • 12V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m²
  • Max door weight: up to 130kg / 230kg* with beams installed
  • Max peak pulling force: 600 N
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
  • Up to 40 remote controls, 4 wireless key entry systems and 16 myQ devices
  • Min headroom required: 216mm

Door Specs

  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors

Door Opening and Closing Times

  • Door opening time: 18  seconds
  • Door closing time: 21 seconds
  • Based on a 2.2m high door

Door Height

  • Door height: 3m
  • Door width: 5.5m
  • Double dwelling
