Roller Door PDP

Discover our range of roller door openers below or send us an enquiry to get expert advice based on your specific needs.

Enquire Now

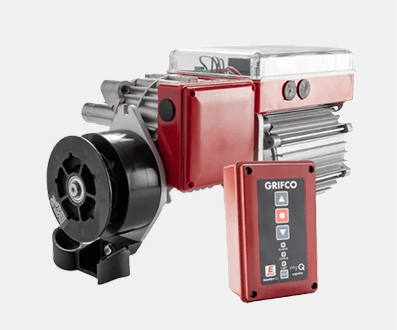

E-Drive RKML

When you need a dependable, all-in-one solution for automating a spring balance roller door, the Grifco E-Drive RKML includes everything required for a standard setup: operator, drive chain and sprocket, mounting plate, Series II plastic drum wheel, and bolt kit.

Manufactured and tested in Australia to meet the needs of local commercial businesses, the RKML achieves a high-performing and customisable setup that responds to high-traffic areas with varying needs. From day one to years later, its equipped high-torque motor, precision gearbox, and intelligent logic system are built to last, ensuring your entry points enable quick and easy access.

Whether you’re fitting out a new site or retrofitting existing doors, upgrade your facility and spring balance roller door with the E-Drive RKML Kit’s easy-to-integrate modular design and Grifco’s range of compatible accessories. Get yours today and enjoy increased convenience, safety, and compliance.

Connectivity & Features

Connectivity: myQ Compatible

Safety & Warranty

Warranty: 2 Years

Downloadable Resources

Brochure

Data Sheet

Installation Manual

C-10A Wall Controller Manual

E-Drive Smoke Baffle Feature (SBF) Manual

E-Drive Vertical Lift Door Opener Kit Manual

E-Drive Logic Conversion Kit Install Manual

E-Drive EB-1 Expansion Board Manual

E-Drive No-neutral Conversion Kit

Compliance

<div>Appropriate entrapment protection devices must be installed and operational to comply with safety standards and enable the proper functionality of the product. Failure to install these devices may result in non-compliance with safety regulations and could impair product functionality.</div> <div> </div> <div>Other compliance accessories may also be required, which is why it’s important to have your site assessed by an authorised Grifco dealer. This ensures the correct products are selected and that installation meets all compliance requirements.</div>

Technical Specifications

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	No Neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
RML6051	0.37kW	3.40A	0.5Hp	240V	1ph	26m²	IP44	LC		✔
RKML6051	0.37kW	3.40A	0.5Hp	240V	1ph	26m²	IP44	LC		✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	No Neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
RKML6051EF	0.37kW	3.40A	0.5Hp	240V	1ph	26m²	IP44	LC		✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	No Neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
RKML6051RO	0.37kW	3.40A	0.5Hp	240V	1ph	26m²	IP44	LC		✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	No Neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
RML6053	0.37kW	1.55A	0.5Hp	415V	3ph	26m²	IP44	LC	✔
RKML6053	0.37kW	1.55A	0.5Hp	415V	3ph	26m²	IP44	LC	✔

Part No.	kW	Amps	HP	Voltage	Phase	Max. Door Size	IP Rating	Duty	No Neutral (N)	Pre-Wired (P)	IP55 (W)	Clutch (C)	Spec Sheet
RKML6053EF	0.37kW	1.55A	0.5Hp	415V	3ph	26m²	IP44	LC	✔

★ ★ ★ ★ ★

Lasting Performance

The purpose-built gearbox and AC motor work together to deliver powerful, reliable, and long-lasting operation.

★ ★ ★ ★ ★

Safe & Compliant

Designed to meet all applicable regulatory standards, the system integrates seamlessly with Grifco’s comprehensive range of safety accessories for a fully compliant installation.

★ ★ ★ ★ ★

Intelligent & Expandable

Equipped with Grifco +2.0 logic, the system is ready for car park, commercial, and industrial applications straight out of the box, with the flexibility to add an optional expansion board for enhanced functionality.

★ ★ ★ ★ ★

Complete Control

Enhance functionality by adding myQ Connectivity. With myQ, you can control your access from anywhere, receive real-time notifications, schedule open and close times - all through the myQ App.
